1445022-4
Manufacturer:
TE Connectivity
Mfr.Part #:
1445022-4
Datasheet:
Description:

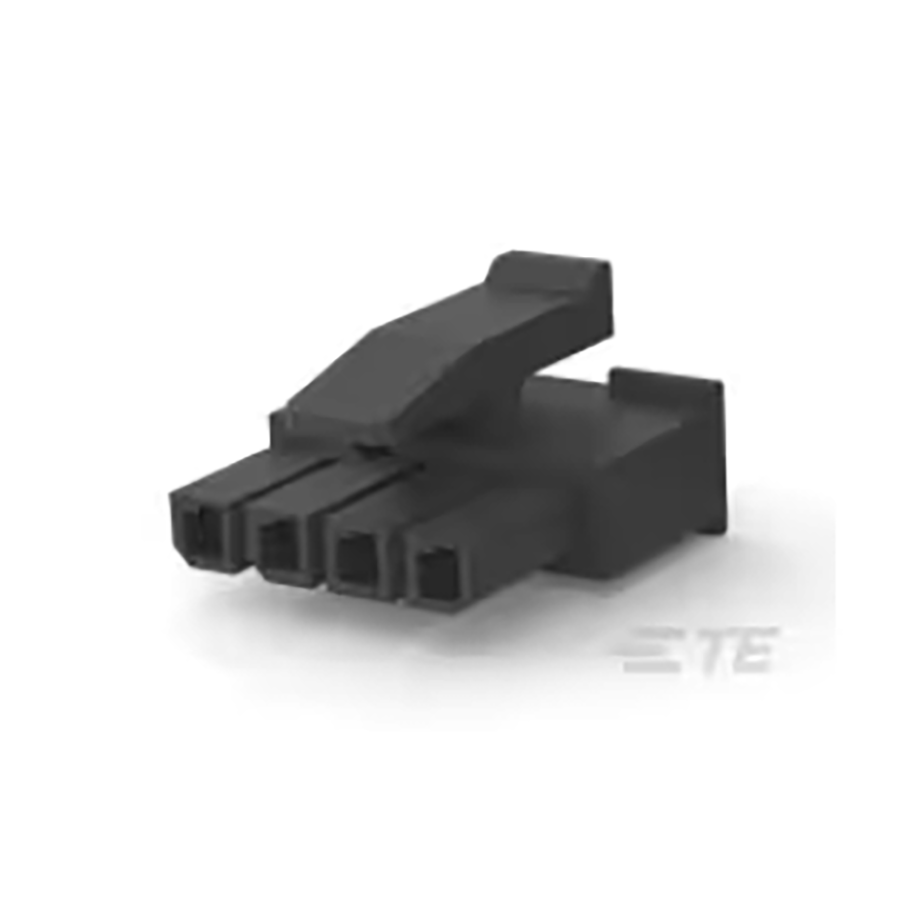

IC and Component Sockets Free Hanging Socket Number of Positions:4 Number of Rows:1 Pitch:2.9972 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 13 mm |
| Width | 13 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Height | 8.7 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 14.04 mm |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.9972 mm |
| Current Rating | 5 A |
| Max Current Rating | 5 A |
| Max Voltage Rating (DC) | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Socket |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Contact Gender | Female |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 591
Distributors
pcbx
pcbxUnit Price$0.36470
Ext.Price$0.36470
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36470 | $0.36470 |
| 10 | $0.28694 | $2.86940 |
| 50 | $0.24807 | $12.40350 |
| 100 | $0.21447 | $21.44700 |
| 500 | $0.19487 | $97.43500 |
| 1000 | $0.18430 | $184.30000 |
